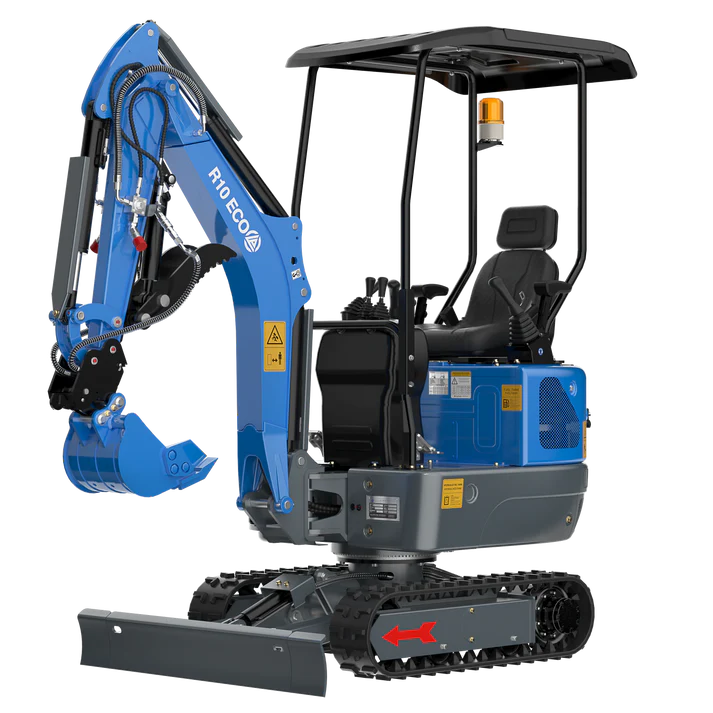

Mini Excavator R10

Mini Excavator R10

The R10 ECO is a powerful and versatile mini excavator, perfect for construction, landscaping, and private projects. Thanks to its flexible configuration options, it can be adapted to your specific needs.
Four upgrades to the base model to choose from:
  • R10 ECO with Kubota engine – Reliable Kubota performance for maximum durability
  • R10 ECO with adjustable undercarriage – Adjustable track width and increased flexibility
  • R10 ECO with joystick side control – Precise operation for demanding tasks
  • R10 ECO with articulated boom – More movement for hard-to-reach areas
Get a Quote

Video Demonstration

Operating Weight : 978 kg / 2,156 lb

Maximum power : 7.5 kW

Maximum digging depth : 1,833 mm / 72.2 in

Engine : Kubota Z482

R10 ECO – Performance Data Koop

Basic Performance DataEU / US
Operating weight978 kg / 2,156 lb
Bucket volume0.014 m³ / 0.49 ft³
Travel speed0–1.5 km/h / 0–0.93 mph
Gradeability30 %
Ground pressure25.53 kPa / 25.53 psi
Max breakout force9.2 kN
Max reach3,233 mm / 127.3 in
Max digging depth1,833 mm / 72.2 in
Max digging height3,021 mm / 118.9 in
Max dumping height2,247 mm / 88.5 in
Max swing angle121°
Track width adjustment912–1,212 mm / 35.9–47.7 in
EngineEU / US
Model / MakeYoop 192F
Max horsepower10.4 HP / 10.2 hp
Max power7.5 kW
Max engine speed3,000 rpm
Displacement0.499 L / 0.133 gal
Number of cylinders1
Cooling systemAir-cooled
Engine oil1.325 L / 0.35 gal
Fuel typeDiesel (No. 0 / -10)
Fuel consumption (theoretical)0.8–1.2 L/h / 0.21–0.32 gal/h
DimensionsEU / US
Transport length2,430 mm / 95.7 in
Transport width912 mm / 35.9 in
Transport height2,201 mm / 86.7 in
Counterweight ground clearance361 mm / 14.2 in
Bucket width300 mm / 11.8 in
Boom length1,477 mm / 58.1 in
Arm length800 mm / 31.5 in
Dozer blade width912–1,212 mm / 35.9–47.7 in
Hydraulic SystemEU / US
Pump type / Model306 (Tianjin Walking / Shengjie)
Max flow18 L/min
Control valve2-2+5 joints (Tengfei)
Rated pressure18 MPa
Max pressure20 MPa
Drive motorBM6-315 (Paiyi/Zhenjiang Dali) – 315
Swing motorBM2-315 – 315
EngineEU / US
Model / MakeKubota Z482
Max horsepower11 HP / 11 hp
Max power8.2 kW
Max engine speed3,000 rpm
Displacement0.497 L / 0.13 gal
Number of cylinders2
Cooling systemWater-cooled
Engine oil1.2 L / 0.32 gal
Fuel typeDiesel (No. 0 / -10)
Fuel consumption (theoretical)0.8–1.2 L/h / 0.21–0.32 gal/h
Hydraulic SystemEU / US
Pump type / Model306 (Tianjin Walking / Shengjie)
Max flow18 L/min
Control valve2-2+5 joints (Tengfei)
Rated pressure18 MPa
Max pressure20 MPa
Drive motorBM6-315 (Paiyi/Zhenjiang Dali) – 315
Swing motorBM2-315 – 315

R10 ECO – Performance Data Kubota

Basic Performance DataEU / US
Operating weight1,000 kg / 2,789 lb
Bucket volume0.014 m³ / 0.49 ft³
Travel speed0–1.5 km/h / 0–0.93 mph
Gradeability30 %
Ground pressure25.53 kPa / 25.53 psi
Max breakout force9.2 kN
Max reach3,233 mm / 127.3 in
Max digging depth1,833 mm / 72.2 in
Max digging height3,021 mm / 118.9 in
Max dumping height2,247 mm / 88.5 in
Max swing angle121°
Track width adjustment912–1,212 mm / 35.9–47.7 in
DimensionsEU / US
Transport length2,430 mm / 95.7 in
Transport width912 mm / 35.9 in
Transport height2,201 mm / 86.7 in
Counterweight ground clearance361 mm / 14.2 in
Bucket width300 mm / 11.8 in
Boom length1,477 mm / 58.1 in
Arm length800 mm / 31.5 in
Dozer blade width912–1,212 mm / 35.9–47.7 in
