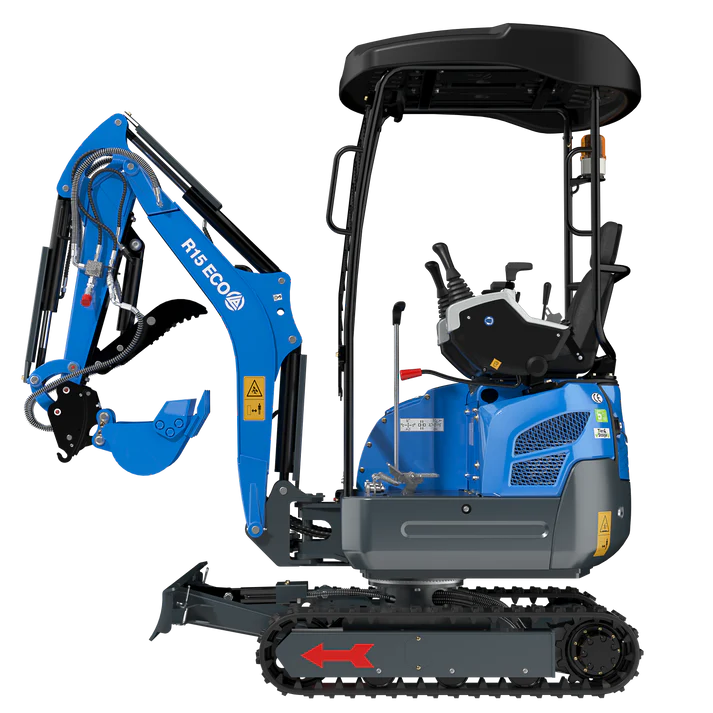

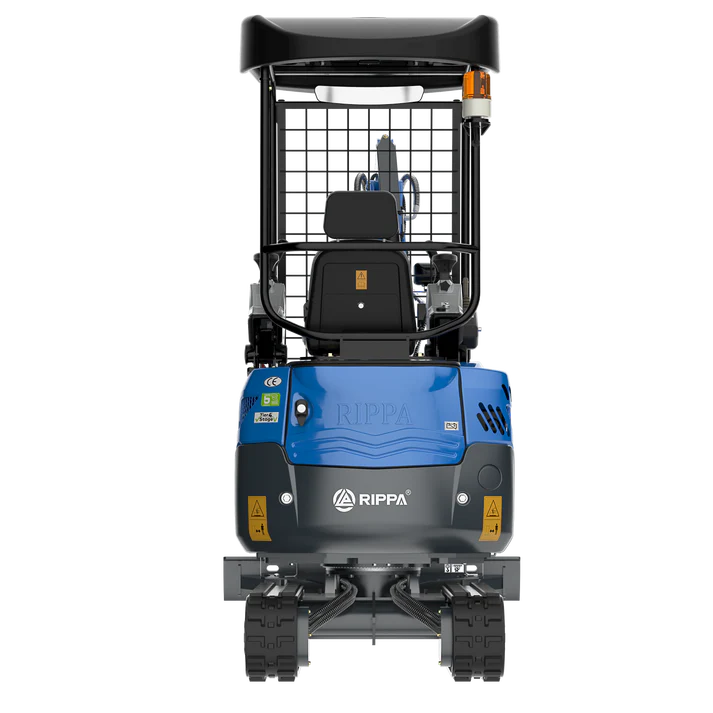

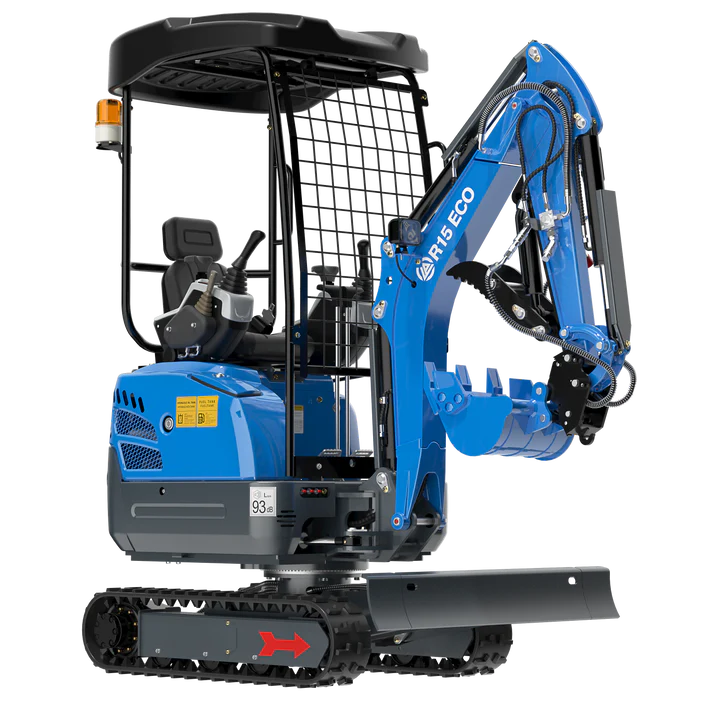

R15 ECO

RIPPA R15 ECO mini excavator is a balanced all-rounder for home infrastructure projects. It supports structured workflows—dig, shape, finish—while staying manageable in residential environments. Ideal for homeowners and small farmers who want one machine to cover most property jobs.

Recruiting agents worldwide:

Video Demonstration

Operating Weight : 1445kg

Maximum power : 10.2 kW

Maximum digging depth : 1807mm

Engine : Kubota D722

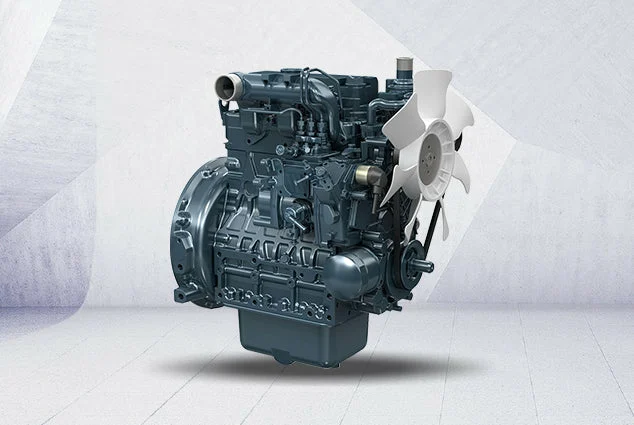

Strong power and high energy efficiency

Equipped with the original imported Kubota D722 three-cylinder water-cooled diesel engine with a maximum output power of 10.2kW, it performs excellently in mini excavation equipment, has stable and reliable power output, and can adapt to various working conditions.

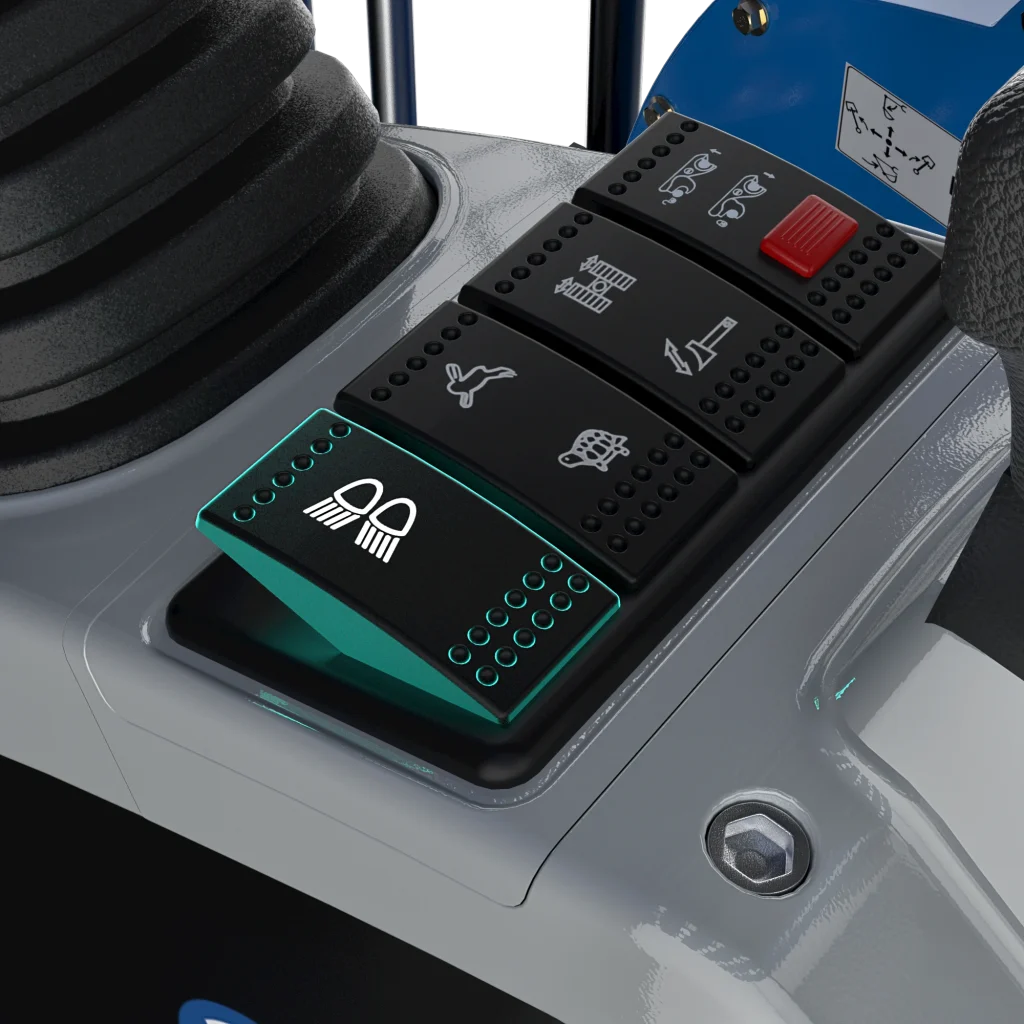

High and low speed walking

The excavator's high- and low-speed travel function is designed to meet the travel speed and traction requirements under different working conditions. Simply put, through the hydraulic system adjustment, the machine can select high or low speed mode when needed.

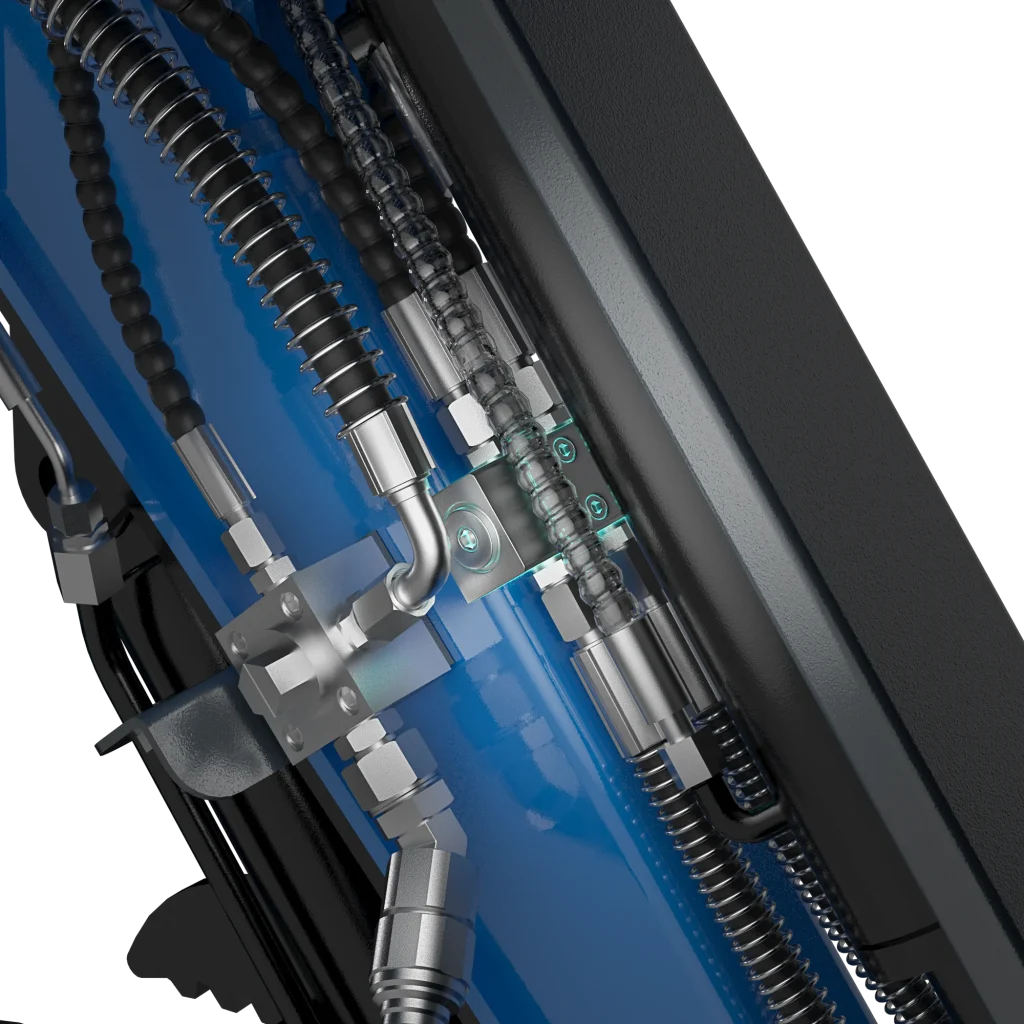

Four-way broken oil pipe with quick connector

Four-way crushing oil pipe, so that the hydraulic thumb clamp (optional), hydraulic quick change (optional) and accessories have separate oil circuits and are equipped with quick connectors to improve connection efficiency and operation convenience

Multipurpose Tool Carrier

The R15 mini excavator has become a highlight product in export trade with its excellent performance, flexible operability, unique design, comfortable operating experience, efficient excavation ability and reliable quality, and can meet the needs of various users.

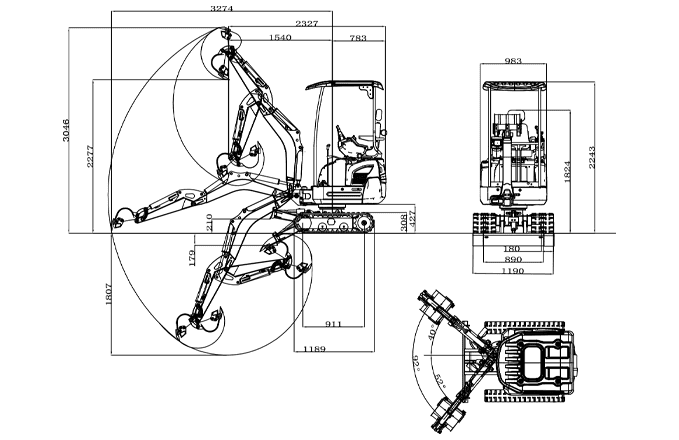

R15 ECO – Specifications

Basic Parameters	EU / US
Operating weight	1500 kg / 3307 lb
Bucket capacity	0.018 m³ / 0.64 ft³
Travel speed	0–2.5 km/h / 0–1.55 mph
Gradeability	30 % / 30 %
Ground pressure	30 kPa / 4.35 psi
Max. digging force	15.0 kN / 15.0 kN
Max. digging radius	3900 mm / 153.5 in
Max. digging depth	2300 mm / 90.6 in
Max. digging height	3400 mm / 133.9 in
Max. unloading height	2400 mm / 94.5 in
Max. slewing angle	120° / 120°
Track (Width×Pitch×Links)	230 mm×96 mm×40 / 9.06 in×3.78 in×40

Engine	EU / US
Brand	Kubota / Kubota
Model	D722 / D722
Max. horsepower	13.7 PS / 13.7 hp
Max. power	10.2 kW / 10.2 kW
Max. speed	2500 rpm / 2500 rpm
Displacement	0.898 L / 0.24 gal
No. of cylinders	3 / 3
Cooling	Water-cooled / Water-cooled
Engine oil	3.1 L / 0.82 gal
Fuel	Diesel / Diesel
Fuel grade	No. 0 / -10 / No. 0 / -10
Theoretical consumption	1.4–1.6 L/h / 0.37–0.42 gal/h

Dimensions	EU / US
Transport length	2700 mm / 106.3 in
Transport width	1200 mm / 47.2 in
Transport height	2350 mm / 92.5 in
Ground clearance (counterweight)	400 mm / 15.7 in
Bucket width	450 mm / 17.7 in
Boom length	1700 mm / 66.9 in
Arm length	950 mm / 37.4 in
Blade width	1200 mm / 47.2 in

Hydraulic System	EU / US
Main pump type/model	CBGJ2080 / CBGJ2080
Main pump brand	Tianjin Walking / Tianjin Walking
Max. flow	26 L/min / 26 L/min
Control valve	2–3 joints / 2–3 joints
Control valve brand	Tengfei / Tengfei
Rated pressure	18 MPa / 18 MPa
Max. pressure	20 MPa / 20 MPa
Travel motor	BM5-250 / BM5-250
Travel motor brand	Paiyi / Paiyi
Travel motor displacement	250 / 250
Slewing motor	BM2-250 / BM2-250
Slewing motor displacement	250 / 250
